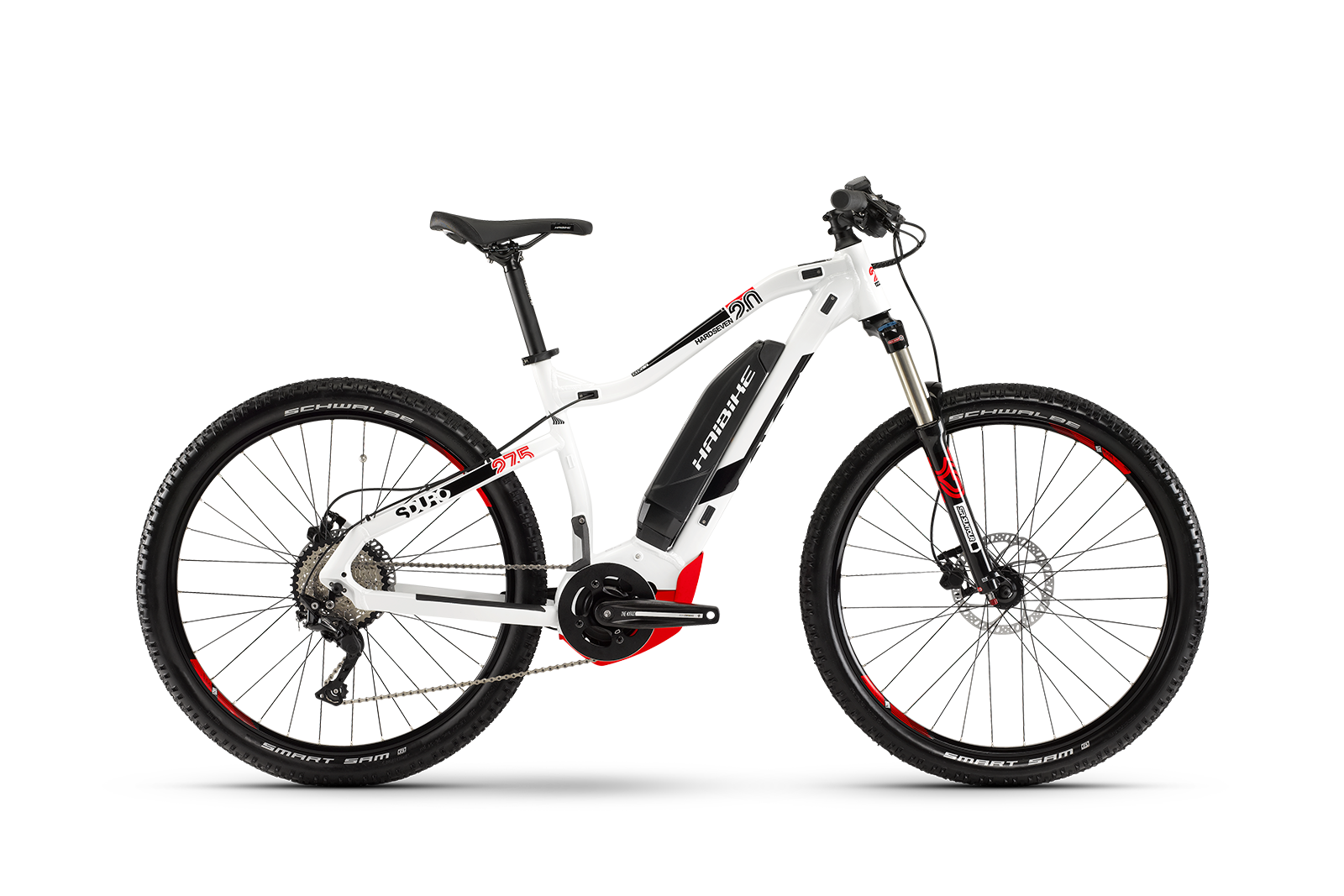

SDURO HardSeven 2.0

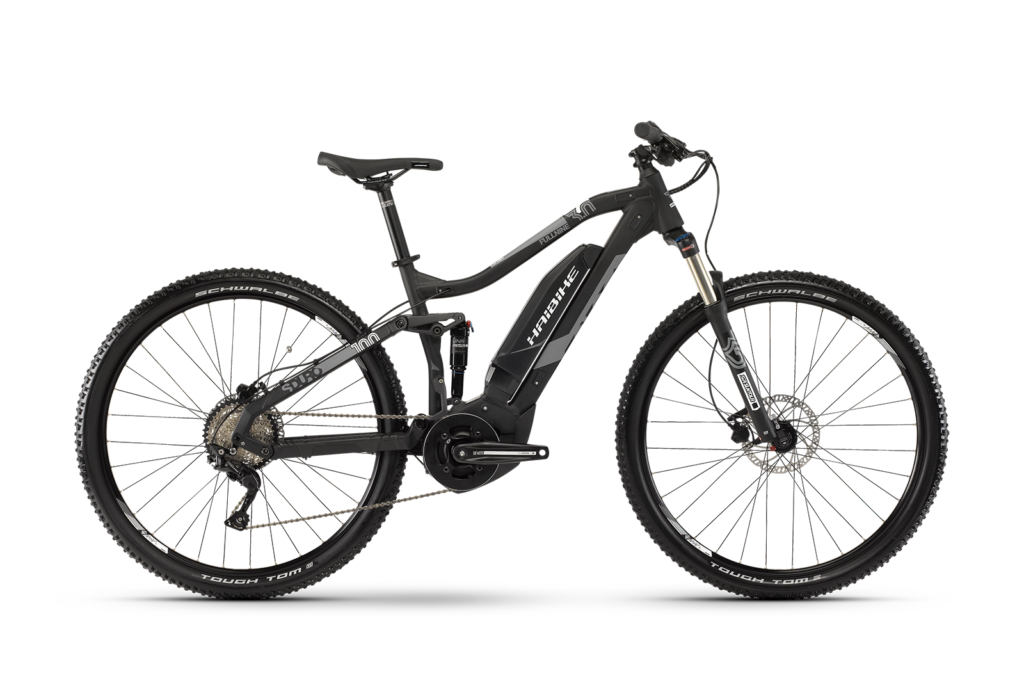

SDURO FullNine 3.0

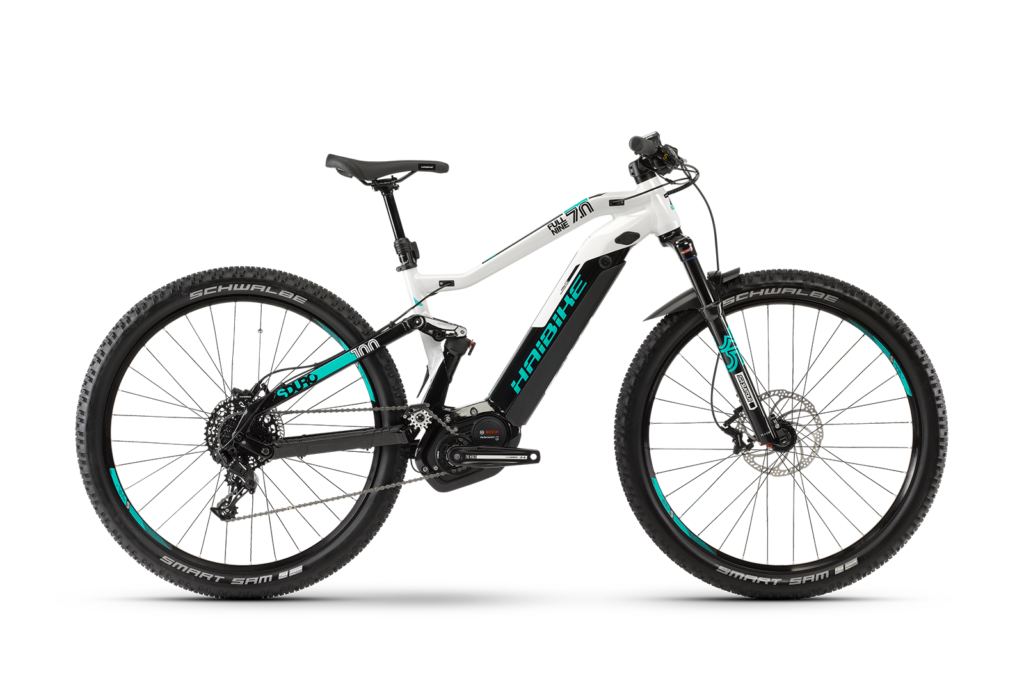

SDURO FullNine 7.0

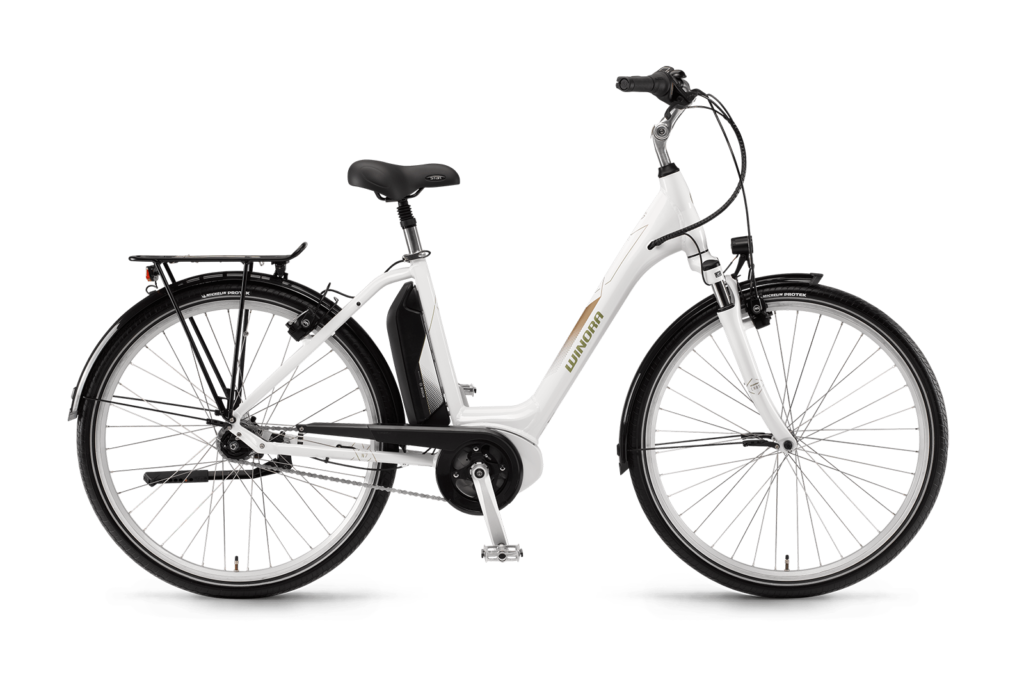

Sima N7 Einrohr

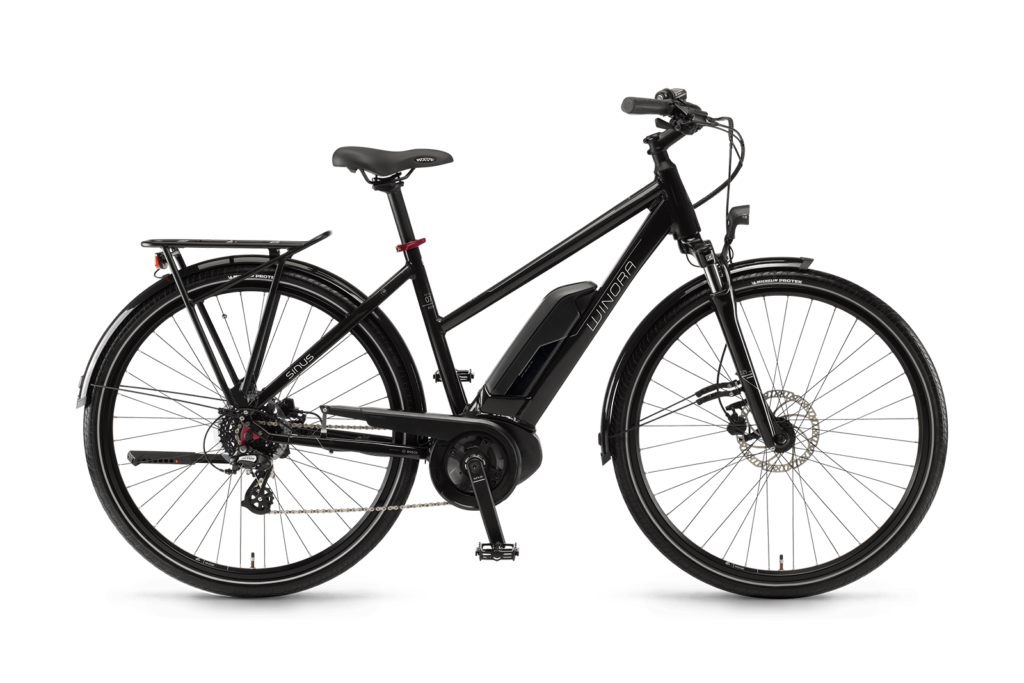

Tria 7eco Damen

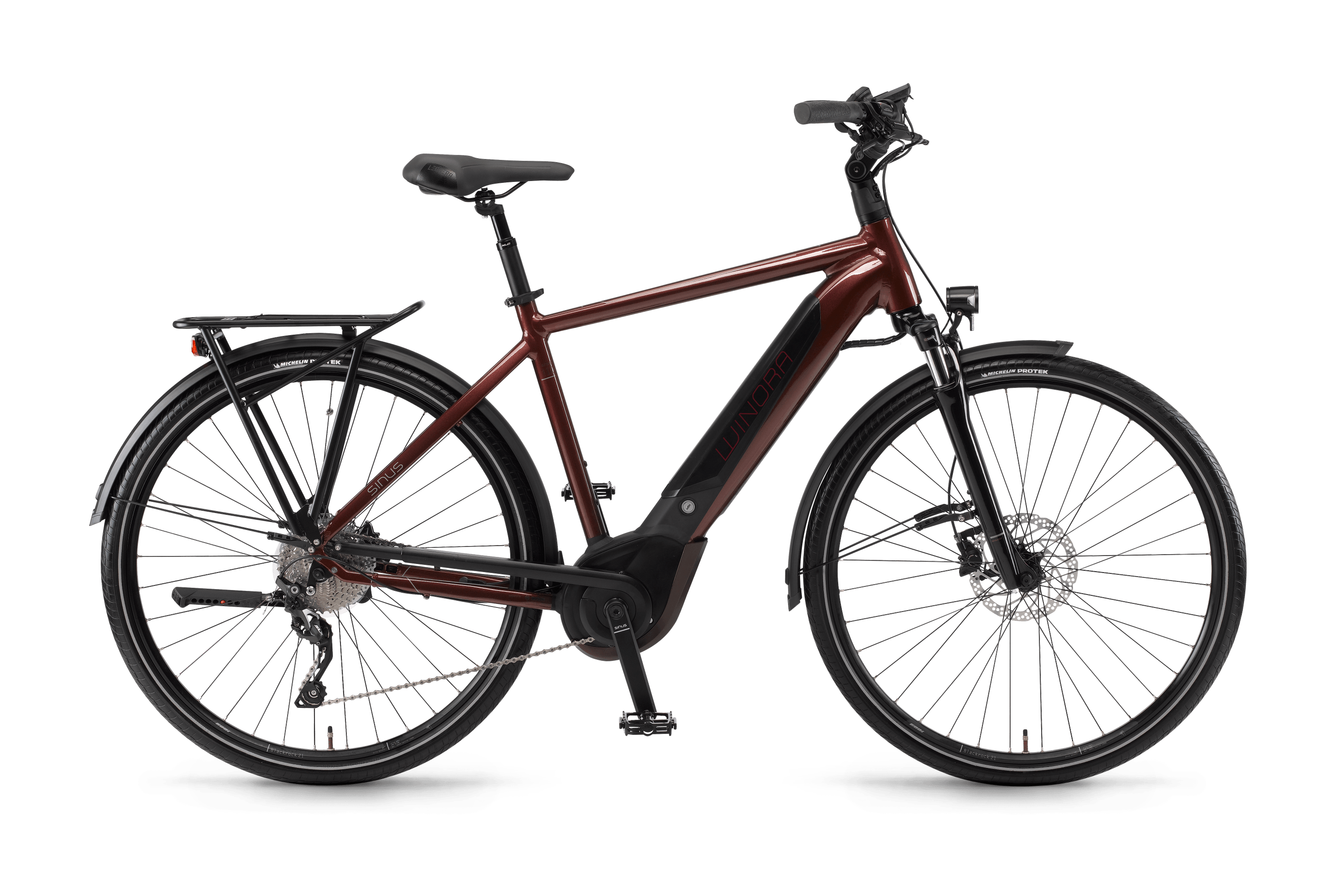

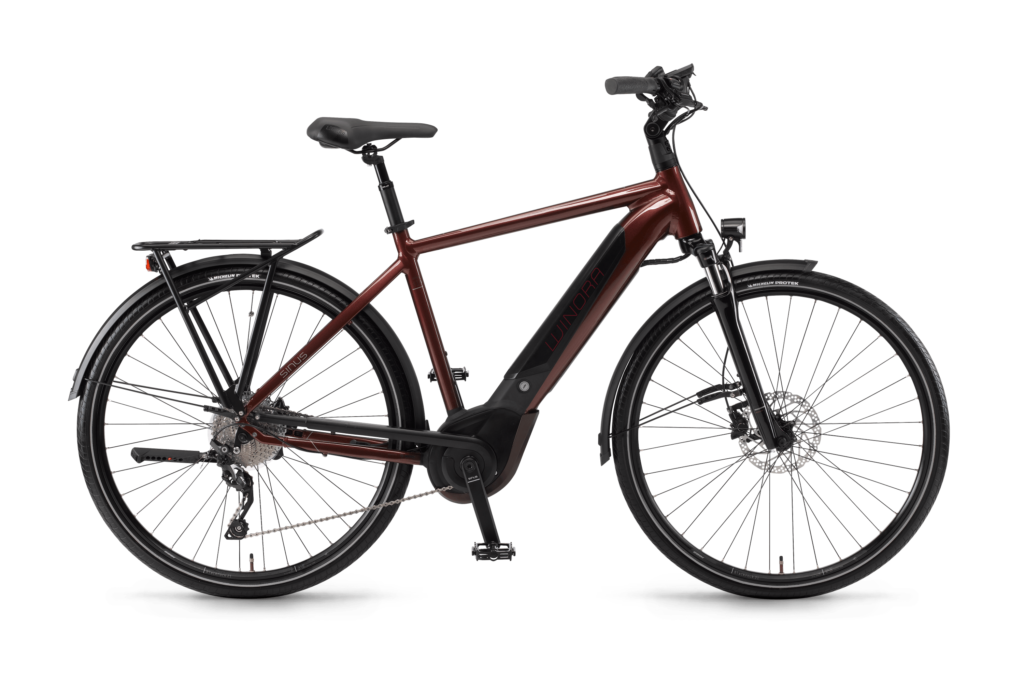

Sinus i10 Damen

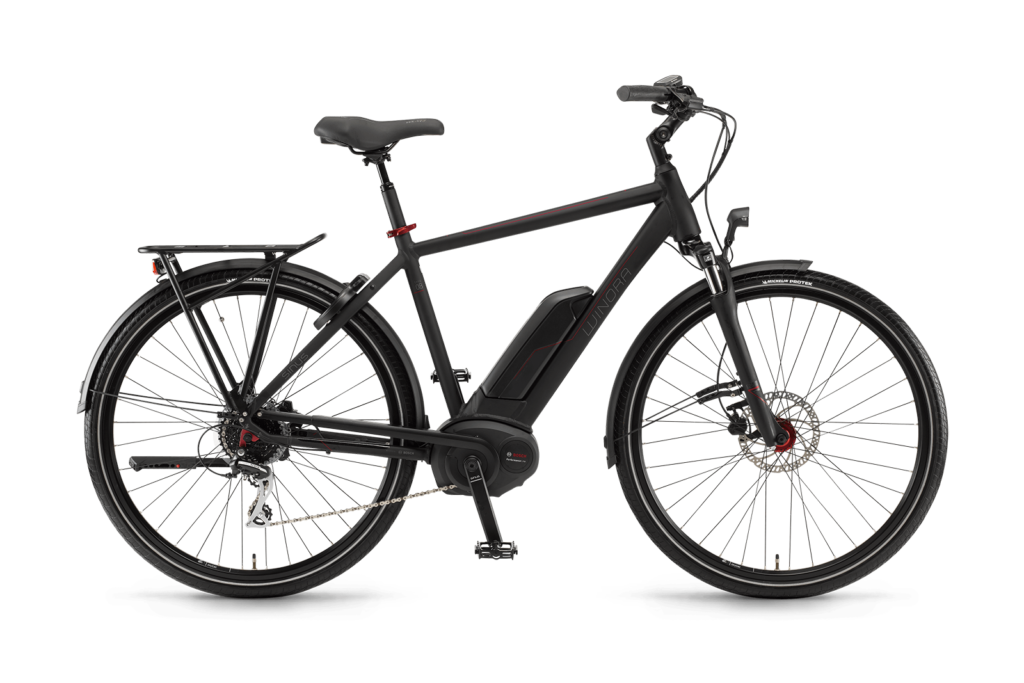

Tria 8 Herren

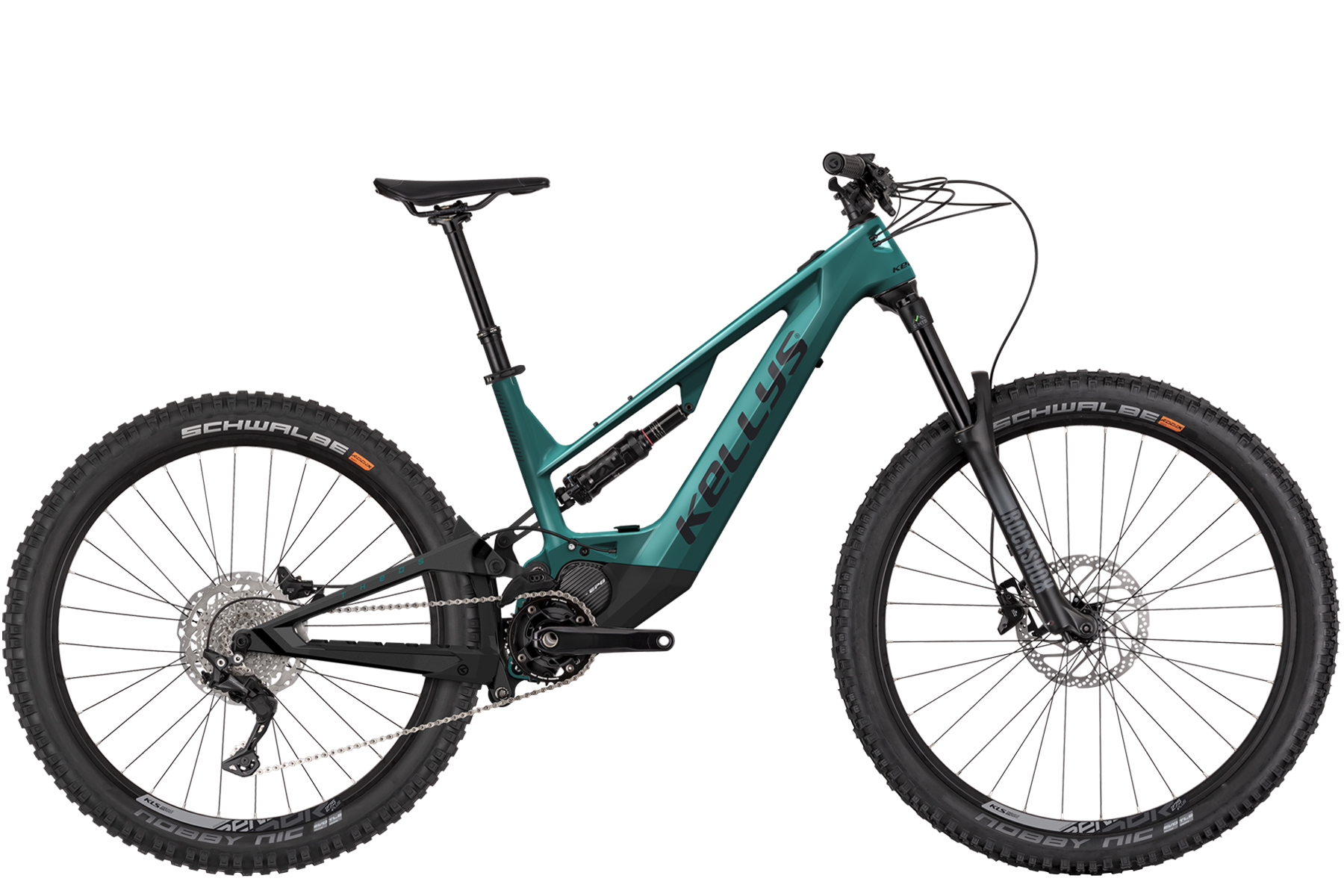

Theos F50 Teal
- Rahmen KELLYS THEOS F series – Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER® by Rein4ced assembled by advanced robotic manufacturing / Think Link, 140mm rear travel, integrated removable battery, 1.8“ tapered HT, post mount 203mm, mullet 29 / 27.5+ wheelset, 12x148mm Boost thru axle
- Rahmengrössen M / L
- E-Bike-System SHIMANO EP8 (021), 85Nm, 36V
- Gabel ROCK SHOX 35 Gold RL (29) Boost, 150mm, DebonAir / Motion Control / Maxle Stealth 15mm thru axle
- Dämpfer ROCK SHOX Deluxe Select R, DebonAir (210x55mm)
- Steuersatz ACROS 1.8 semi-integrated tapered / blocklock
- Kurbelgarnitur SHIMANO EM600 (34T) – length 170mm
- Schalthebel SHIMANO Deore SL-M4100-R Rapidfire Plus (I-Spec EV)
- Schaltwerk SHIMANO Deore M5120 (direct mount)
- Gänge 10
- Kassetenzahnkranz SHIMANO CS-M4100-10 (11-46T)
- Kette KMC e10T (120 links)
- Bremsen SHIMANO MT420 Hydraulic Disc
- Bremsscheiben 203mm front / 203mm rear
- Bremshebel SHIMANO Deore (021) BL-M4100
- Naben SHIMANO MT400-B Disc Center Lock (32 holes)
- Steckachse ROCK SHOX Maxle Stealth 15x110mm front / Mr.control 12x148mm rear
- Felgen KLS Bender Disc 622×38 front / 584×38 rear (32 holes)
- Speichen stainless steel black
- Reifen SCHWALBE Nobby Nic Performance 65-622 (29×2.60) ADDIX front / SCHWALBE Nobby Nic Performance 70-584 (27.5×2.80) ADDIX rear
- Vorbau KLS Alm/En 50 – diam 28.6mm / bar bore 31.8mm / length 60mm
- Lenker KLS Alm/En 70 RiseBar – diam 31.8mm / rise 25mm / width 760mm
- Griffe KLS Poison OneLockon
- Sattelstütze KS RAGE-I Remote Telescopic – diam 30.9mm / length 442mm, travel 150mm
- Sattel Taiga S-alloy rails
- Pedale plastic
Preis: 4999,00 Euro

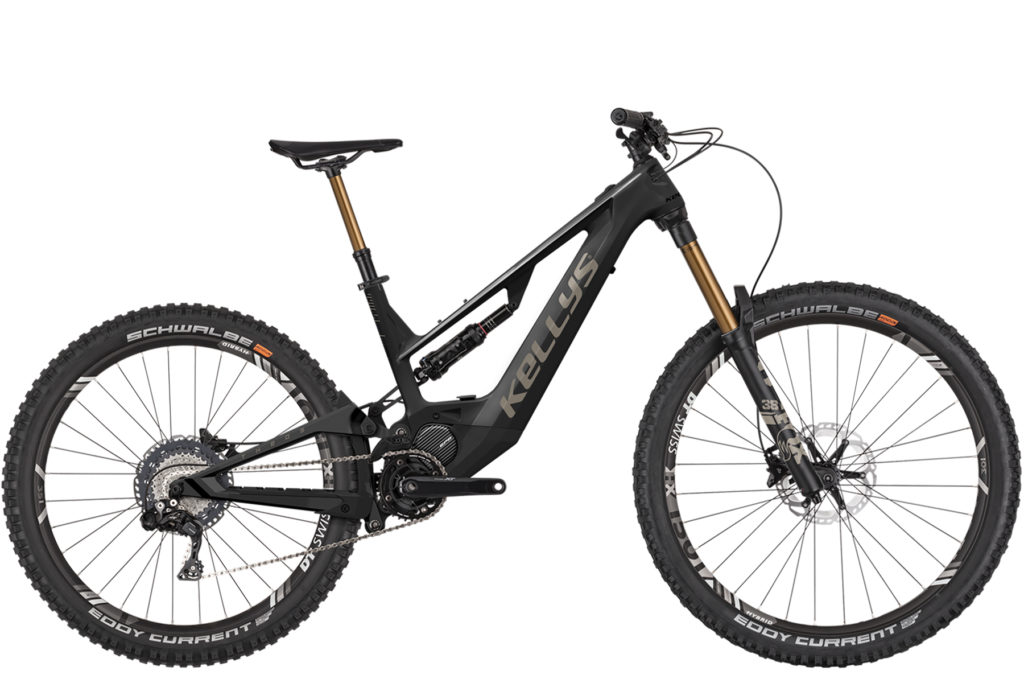

Theos F90
- Rahmen KELLYS THEOS F series – Thermoplastic Hybrid Steel-Carbon Composite a.k.a. FEATHER® by Rein4ced assembled by advanced robotic manufacturing / Think Link, 170mm rear travel, integrated removable battery, 1.8“ tapered HT, post mount 203mm, mullet 29 / 27.5+ wheelset, 12x148mm Boost thru axle / Made in EU
- Rahmengrössen M / L
- Motor SHIMANO EP8 (021) 85Nm, 36V
- Schalter SHIMANO SW-E7000-L for assist
- Informations-Display SHIMANO SC-E7000
- Akku KELLYS Re-Charge K1 Li-ion internal removable 720Wh / capacity 20Ah, co-developed by Kellys-BMZ
- Gabel FOX 38 Float Factory, Kashima Coat (29) Boost, 180mm, Float Evol / GRIP2 damper / 15QR thru axle
- Dämpfer ROCK SHOX Super Deluxe Ultimate, DebonAir / RCT / Open-Threshold (230x65mm)
- Steuersatz ACROS 1.8 semi-integrated tapered / blocklock
- Kurbelgarnitur SHIMANO Deore XT M8150 (34T) – length 170mm
- Schalthebel SHIMANO Deore XT Di2 SW-M8050-R Firebolt
- Schaltwerk SHIMANO Deore XT Di2 M8050 (direct mount)
- Gänge 11
- Kassetenzahnkranz SHIMANO CS-M7000-11 (11-46T)
- Kette KMC e11T (116 links)
- Bremsen SHIMANO Deore XT M8120 Hydraulic Disc
- Bremsscheiben SHIMANO MT800 203mm front / SHIMANO EM810 203mm rear
- Bremshebel SHIMANO Deore XT BL-M8100 Hydraulic Disc
- Steckachse FOX 15QR 15x110mm front / Mr.control 12x148mm rear
- Laufräder DT SWISS H 1700 29 622×30 Center Lock front / DT SWISS H 1700 Spline 27.5 584×35 Center Lock rear (15x110mm / 12x148mm)
- Reifen SCHWALBE Eddy Current Evo SuperTrail 65-622 (29×2.60) Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Eddy Current Evo SuperGravity 70-584 (27.5×2.80) Tubeless Easy, ADDIX Soft, folding rear
- Vorbau RACE FACE Aeffect R 35 – diam 28.6mm / bar bore 35mm / 0° / length 50mm
- Lenker RACE FACE Aeffect R 35 RiseBar – diam 35mm / rise 20mm / width 780mm
- Griffe KLS Poison
- Sattelstütze FOX Transfer Factory Remote Telescopic, Kashima Coat – diam 30.9mm / travel 150mm (M), 175mm (L)
- Sattel Taiga S-alloy rails
Preis: 7999,00 Euro

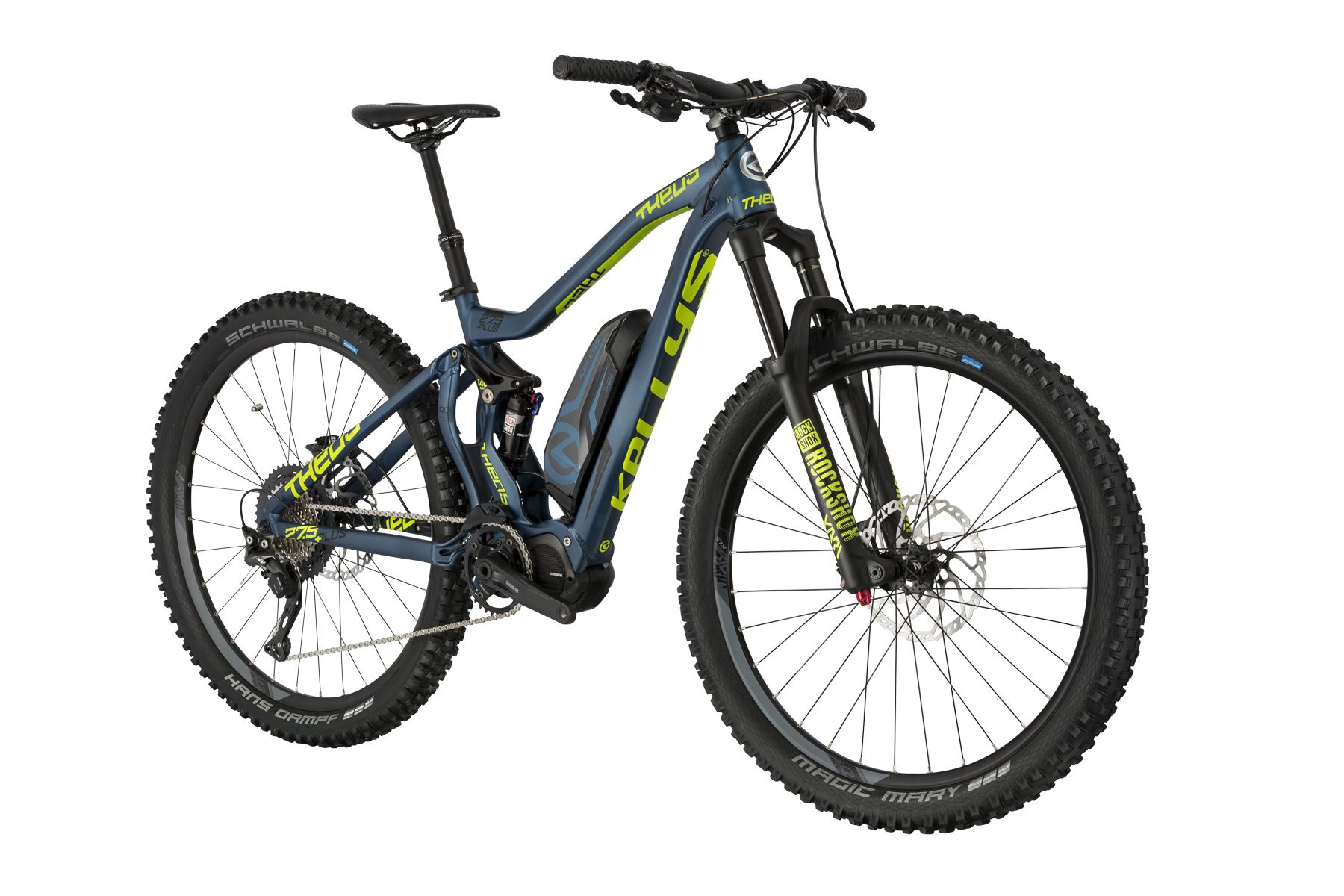

Theos 60 M
- Rahmen KELLYS Allmountain 27.5 / Four-bar link, 140mm rear travel, tapered HT, internal routing, 12x148mm Boost thru axle
- Rahmengrössen M / L
- E-Bike-System SHIMANO STEPS E8000, 36V / battery SHIMANO BT-E8010, 504Wh / capacity 14Ah
- Gabel ROCK SHOX Yari RC (27.5) Boost, 150mm, DebonAir / Motion Control RC / Maxle Stealth 15mm thru axle
- Dämpfer ROCK SHOX Monarch RT, Solo Air / Rapid Recovery / Open-Pedal (200x57mm)
- Steuersatz FSA 1.5 integrated
- Kurbelgarnitur SHIMANO FC-E8000 (34) – length 170mm
- Schalthebel SHIMANO SLX M7000 Rapidfire Plus / SW-E7000 switch for motor assist
- Schaltwerk SHIMANO Deore XT M8000 (direct mount)
- Gänge 11
- Kassetenzahnkranz SHIMANO SLX CS-M7000-11 (11-46)
- Kette KMC X11e (110 links)
- Bremsen SHIMANO Deore XT M8020 Hydraulic Disc
- Bremsscheiben 203mm front / 203mm rear
- Bremshebel SHIMANO Deore XT BL-M8000
- Naben NOVATEC Disc (15x110mm / 12x148mm / 32 holes)
- Steckachse ROCK SHOX Maxle Stealth 15x110mm front / NOVATEC 12x148mm rear
- Felgen KLS Valor 2 Disc 584×27 (32 holes)
- Speichen stainless steel black
- Reifen SCHWALBE Magic Marry 65-584 (27.5×2.60) SnakeSkin, Tubeless Easy, ADDIX Soft, folding front / SCHWALBE Hans Dampf Evo 65-584 (27.5×2.60) SnakeSkin, Tubeless Easy, ADDIX Speedgrip, folding rear
- Vorbau RACE FACE Aeffect R 35 – diam 28.6mm / bar bore 35mm / 0° / length 50mm
- Lenker RACE FACE Aeffect R 35 RiseBar – diam 35mm / rise 20mm / width 780mm
- Griffe KLS Poison
- Sattelstütze KS – Remote Telescopic – diam 31.6mm / length 485mm, travel 150mm
- Sattel KLS Styx
- Pedale KLS Master
Preis: 4899,00 Euro

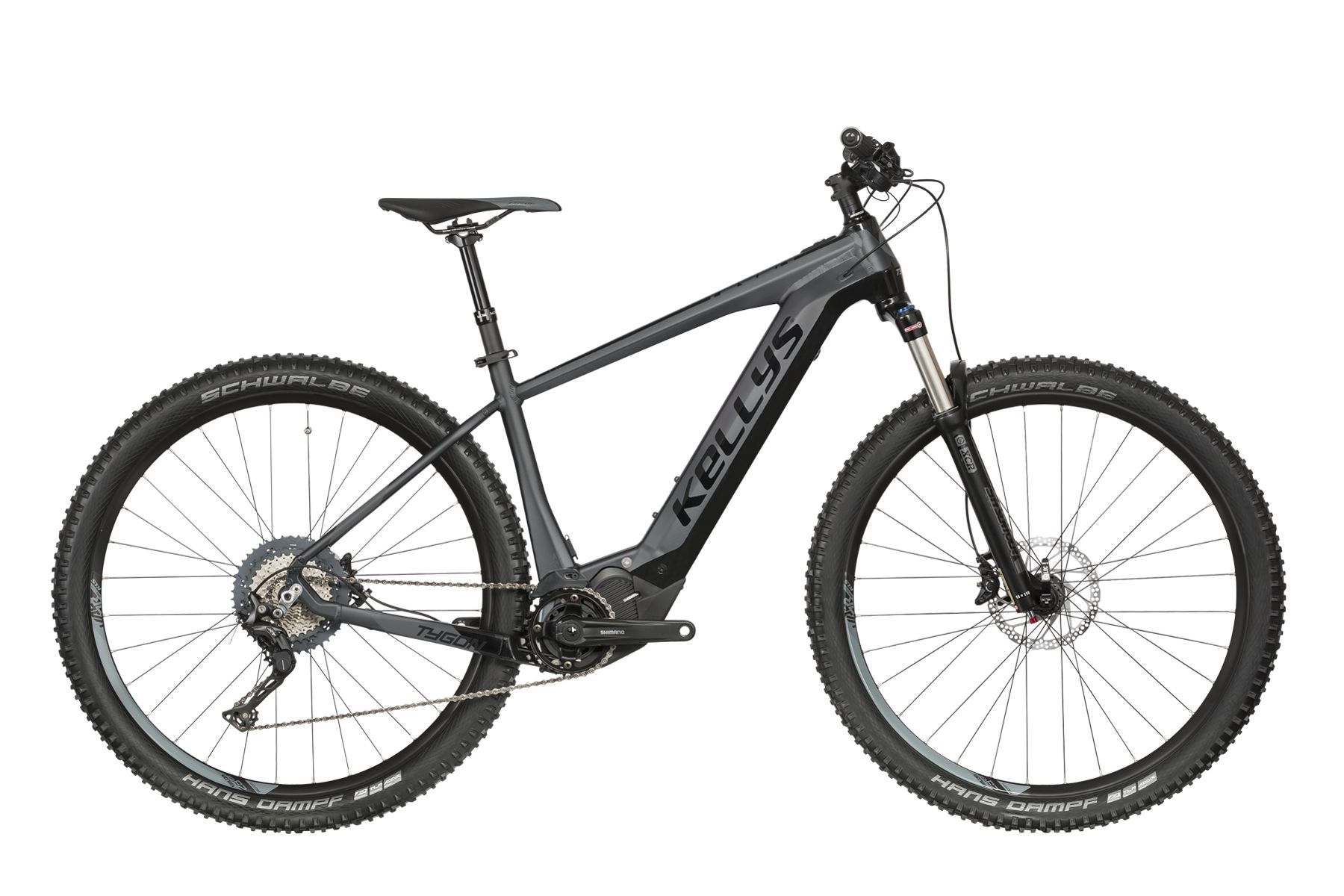

Tygon 50 Black M
- Rahmen KELLYS e-Frame 27.5, Uni-Body Integrated Design, Drive Core, tapered HT, internal routing, 12x148mm Boost thru axle
- Rahmengrössen S / M / L
- E-Bike-System SHIMANO STEPS E7000, 36V / battery KELLYS Re-Charge Li-ion internal 504Wh / capacity 14Ah
- Gabel SR SUNTOUR XCR 34 LOR Air (27.5) Boost, 120mm, air / Speed Lockout / 15Q-Loc thru axle
- Steuersatz FSA 1.5 integrated
- Kurbelgarnitur SHIMANO FC-E8000 (34) – length 170mm
- Schalthebel SHIMANO Deore SL-M6000 Rapidfire Plus / SW-E7000 switch for motor assist
- Schaltwerk SHIMANO SLX M7000-10 (direct mount)
- Gänge 10
- Kassetenzahnkranz SHIMANO CS-HG500-10 (11-42)
- Kette KMC X10e (108 links)
- Bremsen SHIMANO MT400 Hydraulic Disc
- Bremsscheiben 180mm front / 180mm rear
- Bremshebel SHIMANO BL-MT400
- Naben NOVATEC Disc (15x110mm / 12x148mm / 32 holes)
- Steckachse SR SUNTOUR Q-Loc 15x110mm front / NOVATEC 12x148mm rear
- Felgen KLS Valor 2 Disc 584×27 (32 holes)
- Speichen stainless steel black
- Reifen SCHWALBE Nobby Nic Performance 65-584 (27.5×2.60) folding
- Vorbau KLS Active – diam 28.6mm / bar bore 31.8mm / 7° / length 60mm (S – M), 70mm (L)
- Lenker KLS Active RiseBar – diam 31.8mm / rise 15mm / width 720mm (S – L)
- Griffe KLS Poison
- Sattelstütze KLS Active – diam 30.9mm / length 300mm (S), 350mm (M), 400mm (L)
- Sattel KLS Avenger
- Pedale KLS Master 3199,00
Preis: 3199,00 Euro

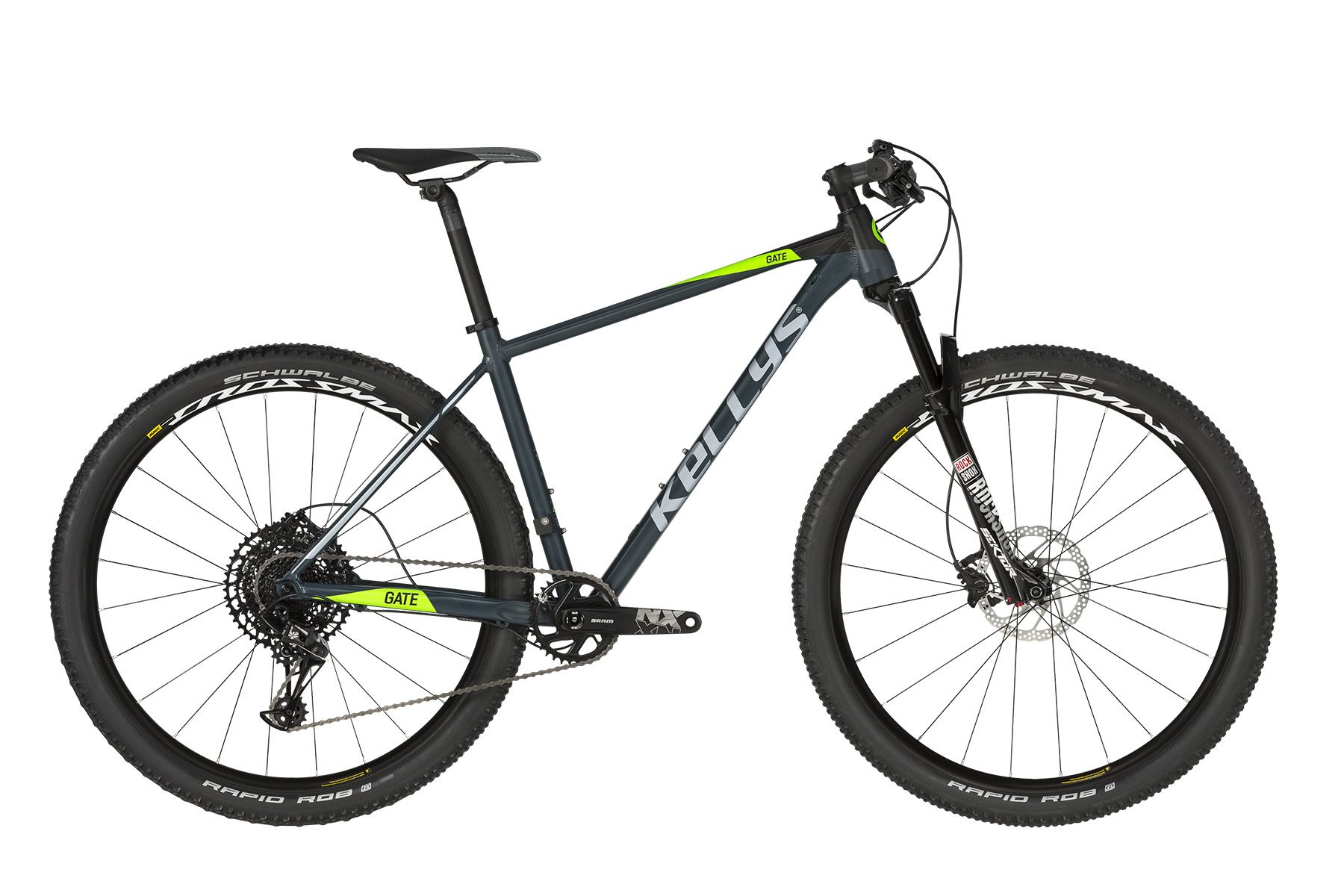

Gate 90 29" L
- Rahmen KELLYS Dynamic RRC 29, tapered HT, internal routing, 12x148mm Boost thru axle
- Rahmengrössen S / M / L
- Gabel ROCK SHOX Sektor RL (29) Boost, 100mm, DebonAir / OneLoc Remote Lockout / Maxle Stealth 15mm thru axle
- Steuersatz FSA 1.5 integrated
- Innenlager SRAM DUB PressFit
- Kurbelgarnitur SRAM NX Eagle DUB 1x X-Sync 2 (34) – length 170mm (S), 175mm (M – L)
- Schalthebel SRAM NX Eagle 12-Speed X-Actuation Trigger (rear)
- Schaltwerk SRAM NX Eagle X-Horizon
- Gänge 12
- Kassetenzahnkranz SRAM PG-1230-12 Eagle (11-50)
- Kette SRAM NX Eagle (116 links)
- Bremsen SHIMANO MT500 Hydraulic Disc
- Bremsscheiben SHIMANO 180mm front / 160mm rear
- Bremshebel SHIMANO BL-MT500
- Steckachse ROCK SHOX Maxle Lite – 15x100mm front / NOVATEC 12x148mm rear
- Laufräder MAVIC Crossmax 29 (15x110mm Boost / 12x148mm Boost) wheelset
- Reifen SCHWALBE Rapid Rob 57-622 (29×2.25)
- Vorbau KLS Advanced – diam 28.6mm / bar bore 31.8mm / 7° / lenght 80mm (S – M), 100mm (L)
- Lenker KLS Advanced FlatBar – diam 31.8mm / width 680mm (S), 700mm (M), 720mm (L)
- Griffe KLS Crypton
- Sattelstütze KLS Advanced – diam 30.9mm / length 350mm (S), 400mm (M – L)
- Sattel KLS Avenger
- Pedale KLS Master – alloy
Preis: 1499,00 Euro

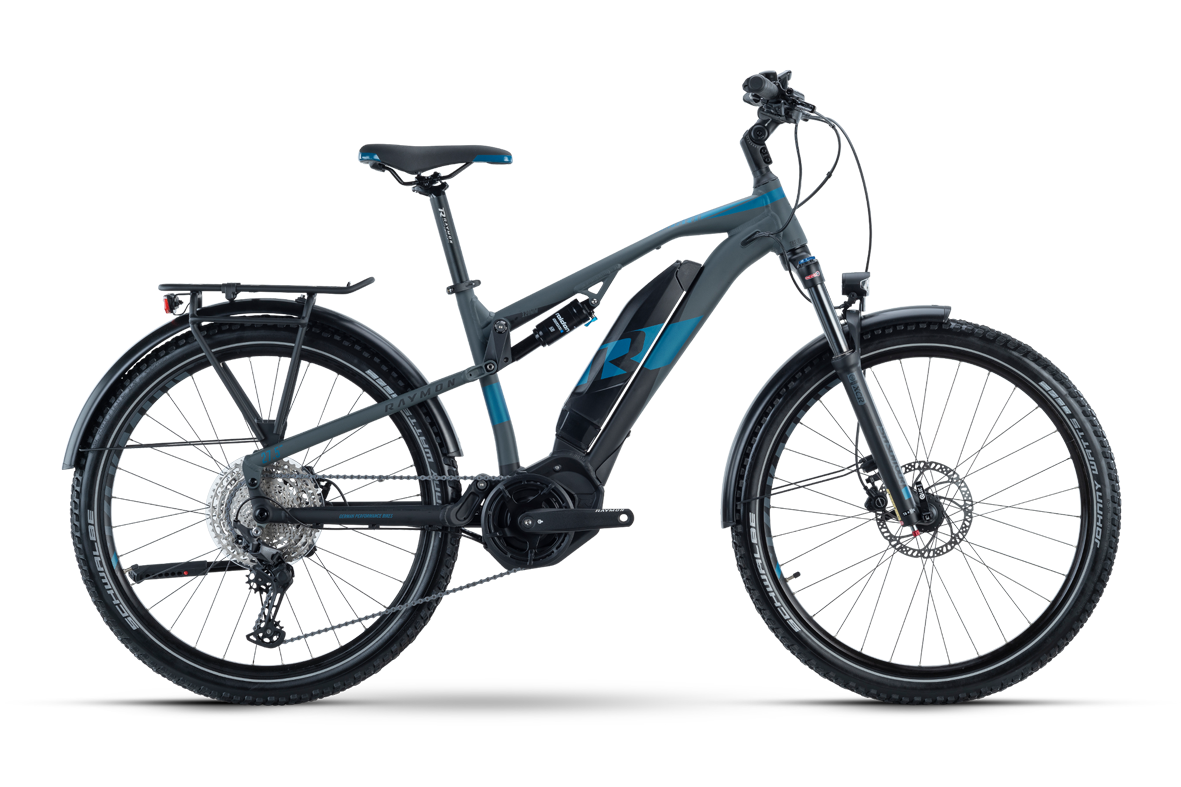

Raymon Crossray E FS 6.0 (2021)
- Rahmen: Alloy 6061, Trekking, 120mm, Integrated Battery, 12x148mm
- Vorbau: R Raymon 31.8, 80mm, adjustable
- Gabel: SR Suntour XCR34 LOR DS, 120mm, Tapered
- Lenker: R Raymon 31.8, 700mm, Sweep: 9°, Rise: 15mm
- Kette: KMC e11S
- Sattel: R Raymon Ergo
- Kassette: Shimano CS-M5100, 11-51T, 11-speed
- Gepäckträger: R Raymon TourFS, MIK-System
- Ladegerät: Yamaha, Fast Charger, 4A
- Display: Yamaha Display C, TFT, BT-LE
- Kurbel: R Raymon, Alloy, 170mm
- Schaltwerk: Shimano Deore, SL-M5100, Rapidfire Plus, 11-speed
- Bremsen: Tektro HD-M500, hydr. Disc
- Bremsscheibe: Tektro TR24, 180mm, 6-bolt
- Griffe: R Raymon Ergo, Lock-On
- Vorderradnabe: R Raymon DA 211F, 6-bolt, 15x110mm
- Hinterradnabe: R Raymon DN622R, 6-bolt, 12x148mm
- Felgen: Mach1-Trucky30, Eyelets, Tubeless
- Reifen: Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5×2.35
- Motor: Yamaha PW-ST, 250W, 70Nm
- Akku: Yamaha DT500, 36V, 14Ah
- Pedale: R Raymon, Alloy
- Sattelstütze: R Raymon 30.9, Patent, 350mm
- Dämpfer: SR Suntour Raidon LO, 190x51mm
Preis: 3499,00 Euro

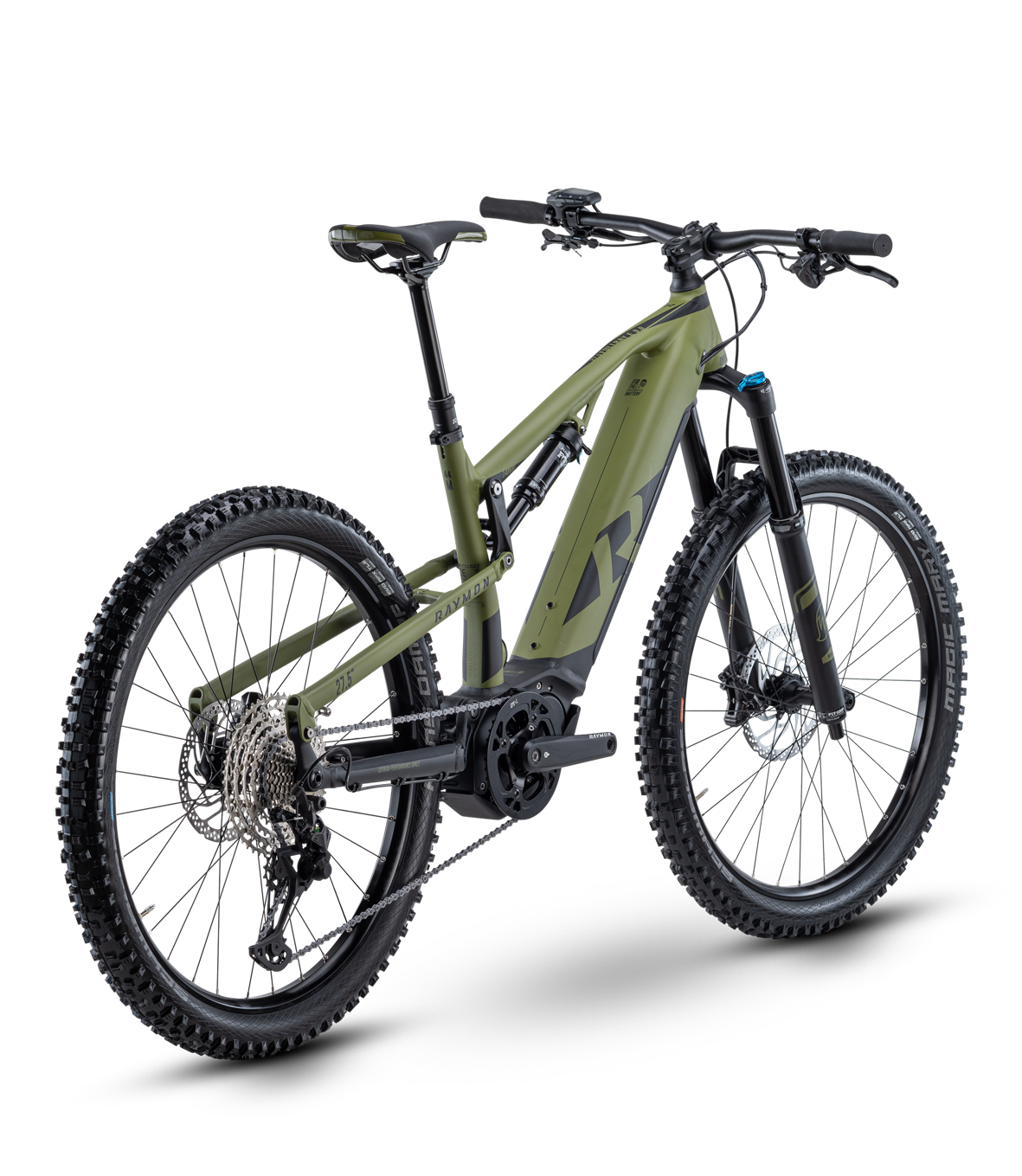

Raymon Fullray E-Seven 9.0 (2021)
- Rahmen: Alloy 6061, All Mountain, 150mm, Integrated Battery, 12x148mm
- Vorbau: R Raymon 31.8, 45mm, 0°
- Gabel: FOX Float 36 Rhythm, Grip, 150mm, E-Bike+, Tapered
- Lenker: R Raymon 31.8, 760mm, Sweep: 9°, Rise: 15mm
- Kette: KMC e12S
- Sattel: R Raymon MTB
- Kassette: Shimano CS-M6100, 10-51T, 12-speed
- Gepäckträger: Simplo, Fast Charger, 4A
- Ladegerät: Yamaha, Fast Charger, 4A
- Display: Yamaha Display A, LCD-Display
- Kurbel: R Raymon, Alloy, 165mm
- Schaltwerk: Shimano Deore, SL-M6100, Rapidfire Plus, 12-speed
- Bremsen: Shimano BR-MT420, hydr. Disc, 4-piston
- Bremsscheibe: Shimano SM-RT30, 203mm, Centerlock
- Griffe: R Raymon MTB, Lock-On
- Vorderradnabe: R Raymon DA210F, Centerlock, 15x110mm
- Hinterradnabe: R Raymon DA210R, Centerlock, 12x148mm
- Felgen: Mach1-Trucky30, Eyelets, Tubeless
- Reifen: Schwalbe Magic Mary, Tubeless, 65-584, 27.5×2.60
- Motor: Yamaha PW-X2, 250W, 80Nm
- Akku: Simplo TPS, 630Wh, 36V, 17,5Ah
- Pedale: R Raymon, Alloy
- Sattelstütze: R Raymon 31.6, Dropper Post, S: 100mm; M: 125mm; L&L: 150mm
- Dämpfer: FOX Float DPS Performance Series, 230×57.5mm
Preis: 4699,00 Euro

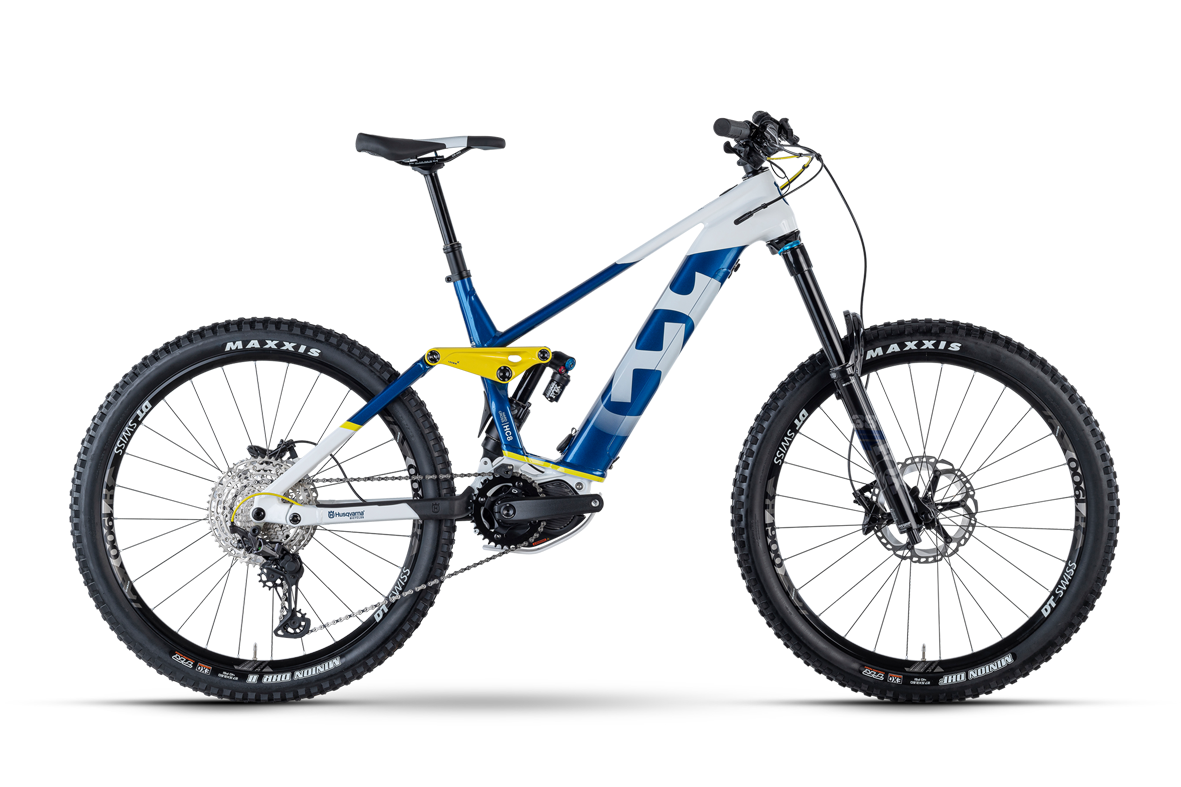

Husqvarna Hard Cross HC8
- Rahmen: Alloy 6061, Enduro, 180mm, Full Active 4-Link, Skeleton Interface, Integrated Battery, 12x148mm
- Vorbau: Husqvarna 35, 40mm, 7°
- Gabel: FOX Float 38 Performance, Grip, 180mm, Tapered
- Lenker: Husqvarna MTB35, 780mm, Sweep: 8°, Rise: 18mm
- Kette: KMC e12S
- Sattel: Husqvarna MTB
- Kasette: Shimano CS-M6100, 10-51T, 12-speed
- Ladegerät: Simplo, Fast Charger, 4Ah
- Pisplay: Shimano SC-E7000, LED-Display, ANT+ &Bluetooth
- Kurbel: Husqvarna, Forged Alloy, 160mm
- Schalthebel: Shimano Deore, SL-M6100, Rapidfire Plus, 12-speed
- Schaltwerk: Shimano Deore XT, RD-M8100, Shadow Plus, 12-speed
- Kettenblatt: Husqvarna, Alloy, Narrow Wide, 34T
- Bremse: Shimano BR-MT520, hydr. Disc, 4-piston
- Bremsscheiben: Shimano RT-MT800, 203mm, Centerlock
- Griffe: Husqvarna MTB, Lock-On
- Satellklemme: Husqvarna 34.9, Alloy, NT
- Reifen: Maxxis Minion DHF, Exo+ Protection, Tubeless, 65-584, 27.5×2.60
- Motor: Shimano EP8, DU-EP8, 250W, 85Nm
- Akku: Simplo TPS, 630Wh, 36V, 17,5Ah
- Akkuschloss: Abus, Battery lock
- Pedale: Husqvarna, Alloy
- Sattelstütze: Husqvarna 31.6, Dropper Post, S: 365mm; M/L: 410; XL: 480mm
- Dämpfer: Fox Float X2 Performance, 225×67.5mm
Preis: 6499,00 Euro

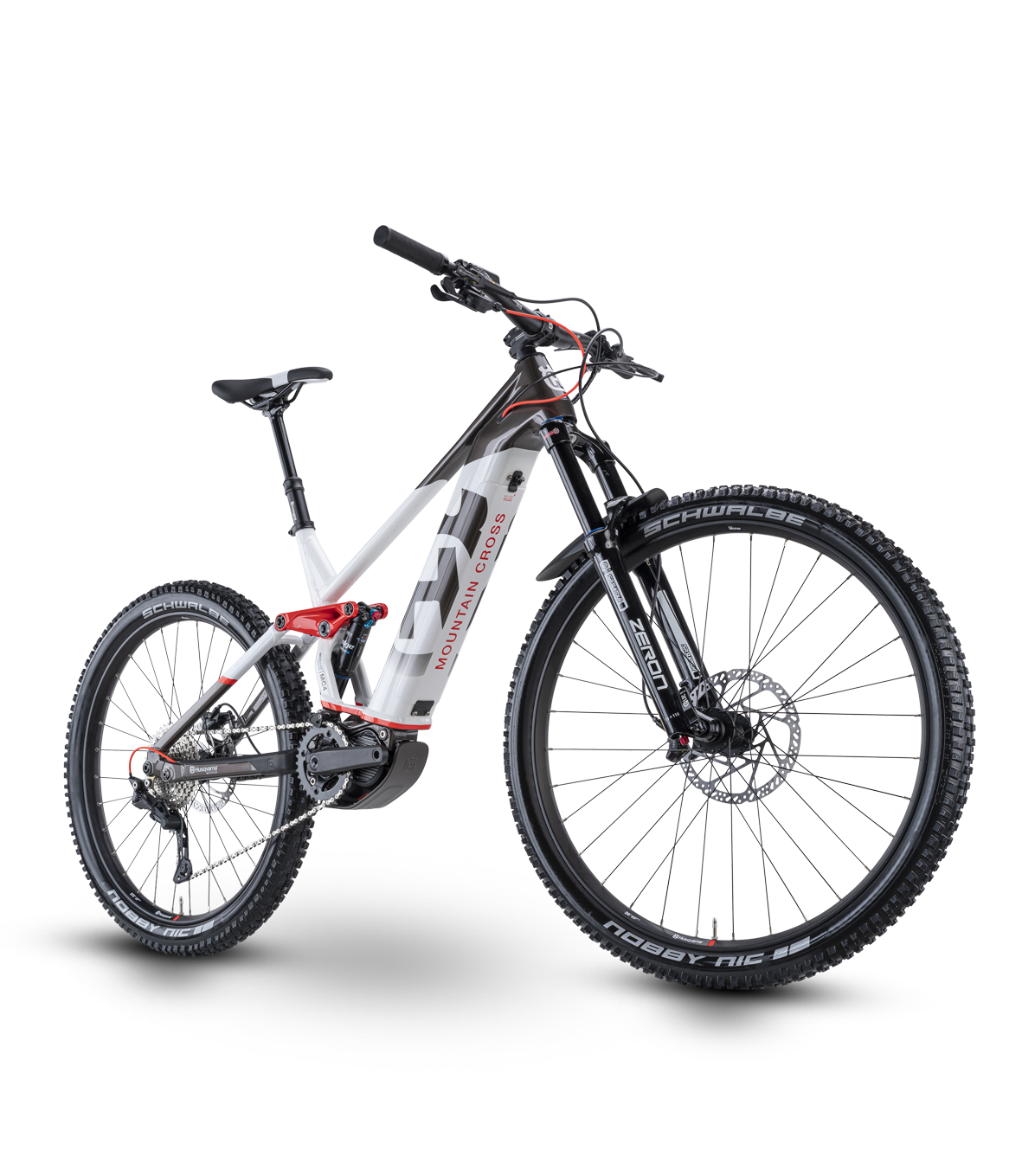

Husqvarna Mountain Cross MC4
- Rahmen: 29/27.5, Alloy 6061, All Mountain, 150mm, Full Active 4-Link, Integrated Battery, 12x148mm
- Vorbau: Husqvarna 35, 40mm, 0°
- Gabel: FOX Float 36 Factory E-bike+, Grip 2, 150mm, Tapered
- Lenker: Husqvarna MTB35, 780mm, Sweep: 9°, Rise: 20mm
- Kette: KMC e12S
- Sattel: Husqvarna MTB
- Kasette: Shimano CS-M6100, 10-51T, 12-speed
- Ladegerät: Simplo, Fast Charger, 4Ah
- Display: Shimano SC-EM800, LED-Display, ANT+ &Bluetooth
- Kurbel: Husqvarna, Forged Alloy, 160mm
- Schalthebel: Shimano Deore, SL-M6100, Rapidfire Plus, 12-speed
- Schatwerk: Shimano Deore XT, RD-M8100, Shadow Plus, 12-speed
- Kettenblatt: Husqvarna, Alloy, Narrow Wide, 34T
- Bremse: Shimano Deore XT, BR-M8120, hydr. Disc, 4-piston
- Bremsscheibe: Shimano RT-MT800, 203mm, Centerlock
- Griffe: Husqvarna MTB, Lock-On
- Sattelklemme: Husqvarna 34.9, Alloy, NT
- Vorderrad: Maxxis Rekon, Exo+ ProTection, Tubeless, 62-622, 29×2.40
- Hinterrad: Maxxis Rekon, Exo+ ProTection, Tubeless, 65-584, 27.5×2.60
- Motor: Shimano EP8, DU-EP8, 250W, 85Nm
- Akku: Simplo TPS, 630Wh, 36V, 17,5Ah
- Akkuschloss: Abus, Battery lock
- PEDALE: Husqvarna, Alloy
- Sattelstütze: Husqvarna 31.6, Dropper Post, M/L: 410mm; XL: 480mm
- Dämpfer: FOX Float DPS Factory, 205x60mm,Trunnion
Preis: 4399,00 Euro
